RZCPS (KBO) -12C/M4/06M product selection 12C economic type current 4A motor control 0.33-1KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -12C/M6.3/06M product selection 12C economic type current 6.3A motor control 1-2.5KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -12C/M12/06M product selection 12C economic type current 12A motor control 2.2-5.5KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -16C/M16/06M product selection 16C economic type current 16A motor control 2.5-7.5KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -32C/M18/06M product selection 32C economic type current 18A motor control 3-8KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -32C/M25/06M product selection 32C economic type current 25A motor control 5.5-11KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -32C/M32/06M product selection 32C economic type current 32A motor control 5.5-15KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -45C/M40/06M product selection 45C economic type current 40A motor control 7.5-18.5KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -45C/M45/06M product selection 45C economic type current 45A motor control 7.5-22KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -63C/M63/06M product selection 63C economic type current 63A motor control 11-30KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -80C/M80/06M product selection 80C economic type current 80A motor control 15-37KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -100C/M100/06M product selection 100C economic type current 100A motor control 18.5-45KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload
RZCPS (KBO) -125C/M125/06M product selection 125C economic type current 125A motor control 22-55KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 basic types of overload

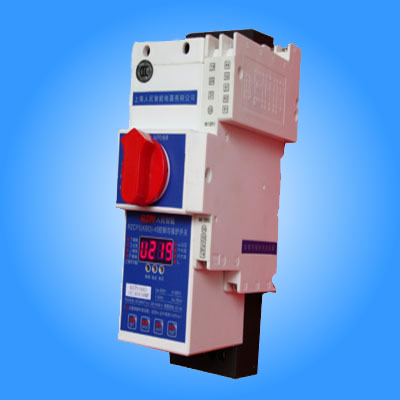

A summary of the protection switch, KBO control
CPS (KBO) series of products will be mainly functional circuit breakers, contactors, overload relays, isolating switch separation element integration, and can integrate a variety of signal, realize the self control and protection in the product characteristics. Has the advantages of small volume, short circuit breaking high performance index, electromechanical long life and high reliability, safe and convenient use, energy saving and other advantages, the main performance indicators have reached the international advanced level.
Two, product advantage
Compared with the system structure and separation apparatus
A. has the characteristics of control and protection from the
CPS (KB0) series of control and protective switching control and protection functions in one, the equivalent circuit breaker (fuse) + + + auxiliary electrical overload relay contactor. The matching problem between protection and control characteristics of a good solution to the separation element cannot or difficult to solve element, the protection and control characteristics with more perfect and reasonable (with anti time limit, time limit and instantaneous three section protection characteristics), as long as the load to the power or current correct selection of a single product, instead of including all electric self power into the line end to end, without derating; greatly reduces the workload of design personnel.
Continuous operation performance of B. with reliability and system there is nothing comparable to this.
CPS (KB0) in maintenance free and can be put into use after breaking short circuit current, only with continuous performance of breaking after the short circuit fault: CPS (IKB0) in breaking short circuit current test, AC-44 electrical life still has not less than 1500 times, this is the system is composed of circuit breaker separation component. The hard to reach, CPS (IKB0) of this feature greatly improves the reliability and continuous operation of the system, the Ics 80kA index belong to the same products in the international leading, the highest index.
C. energy saving
CPS (KB0) has the advantages of small size, less installation area, no separation component contacts, reduce line heating, energy saving, material saving etc..
Compared to three, and the moulded case circuit breaker
A. has the characteristics of high breaking capacity, arcing distance is short.
CPS (KB0) in 380V rated service short-circuit breaking capacity of Ics (o Co-Co) to achieve high breaking type 80kA, type 50kA, standard economic type is 35kA, 50kA is expected in the short circuit current under the breaking time is only 2 ~ 3MS, current limiting factor is less than 0.2, leading to the moulded case circuit breaker, to fuse the limiting level, greatly limiting the short-circuit current of system dynamic, thermal shock. CPS (IKBO) arcing distance is only 20 ~ 30mm.
Compared with the protection system of B. and moulded case circuit breaker which has protective properties, setting current can be adjusted
CPS (KBO) of the current can be adjusted in the panel, which in addition to the protection current conventional according to load power setting, over current protection setting current and adjusted in the adjusted current value (distribution load adjustment range is 3 ~ 6Ie, the motor load adjustment range is 6 ~ 14Ie). To overcome the short circuit breaker protection setting current factory after the user can not adjust the shortcomings, such that CPS (KB0) products even installed at the end of the line, is small short circuit current, also has the short circuit protection function is very good.
Compared with the contactor performance has the characteristics of long service life, convenient operation
Manual operation, and can realize remote control function. The contact and electromagnetic system advanced separation type design, effectively inhibit the two spring contacts, greatly improve the product
