RZCPS (KBO) -16C/M16/06MG product selection 16C economic type current 16A motor control 2.5-7.5KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 overload isolation type
RZCPS (KBO) -32C/M18/06MG product selection 32C economic type current 18A motor control 3-8KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 overload isolation type
RZCPS (KBO) -32C/M25/06MG product selection 32C economic type current 25A motor control 5.5-11KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 overload isolation type
RZCPS (KBO) -32C/M32/06MG product selection 32C economic type current 32A motor control 5.5-15KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 overload isolation type
RZCPS (KBO) -45C/M40/06MG product selection 45C economic type current 40A motor control 7.5-18.5KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 overload isolation type
RZCPS (KBO) -45C/M45/06MG product selection 45C economic type current 45A motor control 7.5-22KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 overload isolation type
RZCPS (KBO) -63C/M63/06MG product selection 63C economic type current 63A motor control 11-30KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 overload isolation type
RZCPS (KBO) -80C/M80/06MG product selection 80C economic type current 80A motor control 15-37KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 overload isolation type
RZCPS (KBO) -100C/M100/06MG product selection 100C economic type current 100A motor control 18.5-45KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 overload isolation type
RZCPS (KBO) -125C/M125/06MG product selection 125C economic type current 125A motor control 22-55KW O6 helper 3 normally open 2 normally closed short circuit to +1 1 overload isolation type

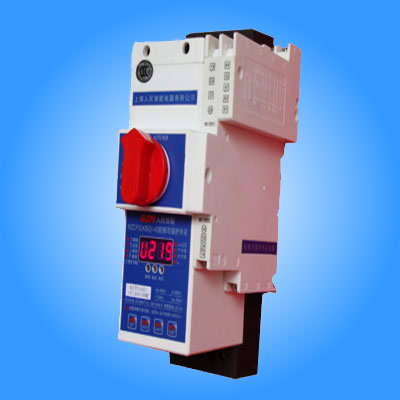

A summary of the protection switch, KBO control:
CPS (KB0) -G isolation
CPS (KB0) isolate -G isolated products applicable to the power distribution circuit and electric circuit, the main circuit can meet the isolation requirements, but also to meet the requirements of control loop.
The main parameters of the main circuit and the accessory modules with basic type.
Isolation type products in the isolated position, with locking device can lock, padlock, by the customer
CPS (KB0) -F fire type
CPS (KB0) -F fire is development in the basic type on the basis of fire control products.
Use
CPS (KB0) -F for the exchange of 50Hz (60Hz), fire protection system of rated voltage up to 690V, rated current from 0.25A to 125A, will be able to get through, bearing under normal conditions include provisions for overload, over current flow conditions, the realization of "only alarm, don't trip"; and will be able to get through, bearing and fault current non normal conditions (such as short circuit current), the realization of "alarm and trip".
Two, the characteristic and the main parameter
CPS (KB0) -F fire control and protective switching devices, the operating mechanism of patent technical design, with only the alarm and other modules realize the fault ", a unique function not trip".
The main parameters of CPS (KB0) appliances basic type control and protection switch in the description.
Three, CPS (KB0) the technical features of -F
Fire protection products are set isolator, circuit breaker (fuse), contactor, relay for multifunctional fire-fighting appliances integration, and has the remote and local control, panel; the maximum rated current is 125A, the breaking capacity of 35KA, only the fire alarm system overload, over-current, "specific requirements do not trip" and "short circuit alarm and trip", these characteristics are the leading domestic level.
The production of KBO control and protection switch, Shanghai people intelligent electric appliance Limited company quality first, price concessions.
Contact person: Mr. Xu mobile phone: 15957738830 www.shrmhz.com
