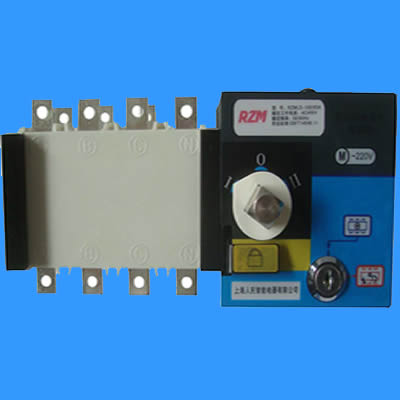

Double power supply automatic switch | Siwo products www.shrmhz.com automatic transfer switch (ATSE), is a set of switch level logic control in one, without external controller, realize the automatic conversion of electromechanical integration switch, a voltage detection, frequency detection, communication interface, electrical, mechanical interlocking functions, can realize the automatic remote, emergency manual control, electric.
Operation is the operation by the logic control board in various logic commands to manage the motor, gearbox to achieve, the motor drives the switch spring energy storage mechanism, accelerate the instantaneous release, fast switch off circuit or circuit switching, realize safe isolation by visible state, greatly improves the electrical and mechanical properties.
Switch the overall design of the metal shell, firm. Switch control part is the metal shell, switch shell parts adopt glass fiber unsaturated polyester resin manufacturing, with stronger dielectric properties, protection and reliable operation safety.
Between the main power switch for power supply system and standby power supply automatic switching or two load equipment automatic conversion and security isolation.
Switch, novel, simple appearance, small volume, complete functions, is an ideal choice for different occasions.
Method type function:
Type R1: automatic recovery, phase detection (main, preparing the three-phase), pressure loss detection, zero fire, indicator light.
Type R2: since the vote no recovery, phase detection (main, preparing the three-phase), pressure loss detection, zero fire, indicator light.
Type S1: automatic recovery, phase detection (main, preparing the three-phase), pressure loss detection, zero, fire digital display, parameter setting, modification, with
Preparation of extended interface. The use of the environment and use
The use of the environment:
The altitude does not exceed 2000 meters
Ambient temperature is not higher than 40 ℃, not lower than -5 ℃,
The temperature of +40 ℃, relative humidity of not more than 50,
Due to the change of occasionally produce special measures should be taken.
No environmental media of explosion risk
No snow or rain environment
