RZMQ2 dual power automatic switch: B type three-phase sampling detection, LED Chinese display, with fire protection function, engine automatic start, voltage display cycle
Double power automatic switch used in rated working voltage 400V, frequency 50/60HZ emergency power supply system.
When a power failure occurs, you can switch between the normal power supply and standby power supply automatically, without manual operation, to protect important user power supply reliability.
Two, characteristics
Push the handle of the adjustable slider structure design, the circuit breaker closing to travel more widely, let each process in the production process more simple. The frame current by 63, 100, 225, 400, 630, 800A a total of 6 specifications, product design style is consistent, helps to enhance the grade of the product and the enterprise image. Optimization design of cam mechanism in the reliable mechanical interlocking functions at the same time, let the mechanical service life can reach 10000 times. The mechanical positioning detection structure, make the switch in the fire linkage switch is more accurate and reliable. The controller provides 2 types, choose according to the different needs of users. From the basic transformation of the most simple to the most comprehensive measurement - control function, only need to replace control unit, without increasing the size of products. The control panel detachable structure design, split one free combination, can be distributors, manufacturers and end users to reduce inventory.
Three, the electric operating mechanism
The permanent magnet synchronous motor driven cam mechanism to promote the implementation of closed circuit breaker: so as to realize the automatic conversion of the two power supply.
Having a very reliable mechanical interlock function, can prevent the two power supply at the same time closing.
Close position indicator, circuit breaker:
A manual operating handle, can be used with no power supply in case of human operation
• products are divided into 63, 100, 225, 400, 630, 800, a total of 6 specifications, 3P, 4P
• electrical characteristics: operating voltage, AC220V/ motor power: 20W - 40W

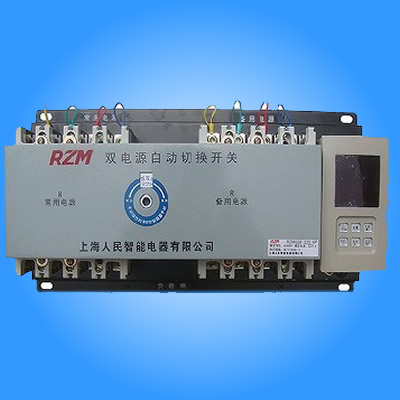

Four, CMB type controller
The controller is a kind of multifunctional electric power monitor, it sets the measurement, analysis, control, protection, three remote and other functions into one, widely used in generators require a high degree of automation of the control box of electric power automation system.
• with slightly Micro Linear panel. Measuring value can be clearly displayed in red panel;
• users can directly access the required parameters and set, the interface between the navigation is very intuitive;
• display panel can be unloaded mounted to the door, let the user does not need to open the door of the situation can be observed state and parameter of power supply switch; the connection between the two is only a RJ45 cable, communication can be achieved, without any special customized or configured. And since the start of turbine on-line automatic start generator.
Technology characteristics:
• working environment temperature: -30.C---+60.C
• working voltage range: AC 150 260V
• transfer delay: 0~180S adjustable
• the return delay: 0~180s adjustable
• voltage measurement range: 0~300v
• overvoltage switching value: 240~280v adjustable
Under voltage conversion value: 150~200v adjustable
CM1-63 A: single phase sampling detection
Double power automatic switch used in rated working voltage 400V, frequency 50/60HZ emergency power supply system.
When a power failure occurs, you can switch between the normal power supply and standby power supply automatically, without manual operation, to protect important user power supply reliability.
Six characteristics
Push the handle of the adjustable slider structure design, the circuit breaker closing to travel more widely, let each process in the production process more simple. The frame current by 63, 100, 225, 400, 630, 800A a total of 6 specifications, product design style is consistent, helps to enhance the grade of the product and the enterprise image. Optimization design of cam mechanism in the reliable mechanical interlocking functions at the same time, let the mechanical service life can reach 10000 times. The mechanical positioning detection structure, make the switch in the fire linkage switch is more accurate and reliable. The controller provides 2 types, choose according to the different needs of users. From the basic transformation of the most simple to the most comprehensive measurement - control function, only need to replace control unit, without increasing the size of products. The control panel detachable structure design, split one free combination, can be distributors, manufacturers and end users to reduce inventory.
Seven, the electric operating mechanism
The permanent magnet synchronous motor driven cam mechanism to promote the implementation of closed circuit breaker: so as to realize the automatic conversion of the two power supply.
Having a very reliable mechanical interlock function, can prevent the two power supply at the same time closing.
Close position indicator, circuit breaker:
A manual operating handle, can be used with no power supply in case of human operation
• products are divided into 63, 100, 225, 400, 630, 800, a total of 6 specifications, 3P, 4P
• electrical characteristics: operating voltage, AC220V/ motor power: 20W - 40W

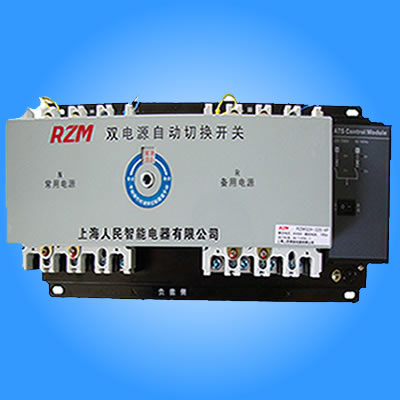

Eight, CMA type controller
The controller is a simple type, has the advantages of simple operation, function, visual display etc..
Conversion, through automatic and manual conversion panel to control the switch;
The automatic conversion mode for automatic recovery mode;
• control panel is provided with two power indicator and the switch position indicator, and the indication signal can pass through the terminal output to control the bottom of the (output signal for the AC220V active signal).
Technology characteristics:
• working environment temperature: -30.C---+60.C
Shanghai people intelligent electric appliance Limited company production of RZMQ2 dual power automatic switch, quality first, price concessions.
