Product overview:

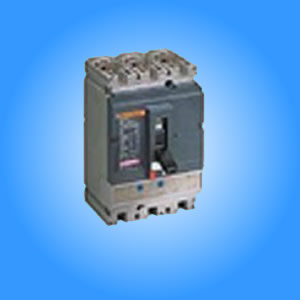

One, the application range of the NS series moulded case circuit breaker is one of the new type circuit breaker this company adopts the international advanced technology research and development, its rated insulation voltage of 950V, applicable to AC 50Hz or (60Hz), rated voltage 690V and below, current rated current 12.5A to 630A, for the distribution of electricity, do not frequently closed under normal conditions and disconnected with, and play a protective role in the line and the equipment overload, under voltage. Rated frame size current in 400A and circuit breaker below, can also be used as a squirrel cage motor is not frequent starting, running off and in the motor overload, short circuit and under voltage protection works. Products comply with GB14048.2, IEC60947.2 standard. Two, category 1, according to the installation mode is divided into: vertical, horizontal loading; 2, by use of circuit breaker: distribution and protection, motor protection type; 3, according to the mode of connection points: front plate connector, wiring on back of the board, insertion type wiring; 4, according to the operation mode: direct manipulation, handle external turning handle operation, electric operation; 5, press release type: only the instantaneous tripping device (electromagnetic release), thermal and electromagnetic trip (double), electronic release; 6, according to very few points: diode, triode, tetrode; quadrupole circuit breaker, neutral (N) there are four kinds of type: A type: N is not installed over current tripping device, and N is always on is not with the other pole together; B: N is not installed over current tripping device, and the N pole and the other pole together; C type: N pole mounted over current release, and the N pole and the other pole together; D type: N pole mounted over current tripping device, and N is always on, not together with other pole; has the inverse time characteristic of circuit breaker tripping characteristic thermodynamic release three, circuit breaker; electromagnetic tripper for instant action (distribution) have (protection of electric Machine is shown in table two and table three). Rated current of release (A) thermal type releaser (ambient temperature and 40 ℃) electromagnetic release action current (A) 1.05In In ≤ 63 ≥ 1 < 1 10In ± 20%63 < In 100 ≥ 2 < 2 10In ± 20%100 < In < 630 > 2 < 25 ～ 10In ± 20% rated current of release (A) thermal type tripping device (ambient temperature +40 ℃ land) electromagnetic release action current (A) 1.0In (cold) no action time 1.20In (hot) action time 1.50In (hot) action time 7.20In (cold) action time ≥ 2 < 2 < 4min < Tp 10s 2S 12In ± 20% note: distribution circuit breaker without code: protection motivation for circuit breaker to "2". A direct operation without code: electrical operation "P"; "Z" said turning the handle. Rated short-circuit breaking capacity level: D- economic N- high breaking type L- ultra high breaking type four, the main technical indexes of type of circuit breaker rated current (A) poles rated insulation voltage (V) rated working voltage (V) arcing distance (mm) ultimate short-circuit breaking capacity (kA) dynamic circuit component breaking capacity (kA) performance (life) of electrifying electrify NS-100D 12.5, 16, 20, 25, 32, 40, 50, 63, 80100 diode triode quadrupole 950690 and below 0181815008500 NS-100N 2525 NS-100H 7070 NS-100L 150150 NS-160D 16, 20, 25, 32, 40, 50, 63, 801001251602525100 combination system 7000 NS-160N 3636 NS-160H 7070 NS-160L 150150 NS-250D 160180200225250252 10007000 NS-250N 3636 NS-250H 7070 NS-250L 150150 NS-400D 200225250300315400 triple quadrupole 950690 and below 0353510004000 NS-400N 4545 NS-400H 7070 NS-400L 150150 NS-630D 315350400500600630 353510004000 NS-630N 4545 NS-630H 7070 NS-630L 150150 and five, modular system more additional module NS series structure more perfect, tripping Element, auxiliary device and connecting accessories are the same in the following types of models: general as shown in Figure 1 parts of NS-100-NS-250 type circuit breaker and load switch. The structure of NS-400-NS-630 type circuit breaker of the same. Few elements common to all types. Six, NS-100D/N/H/L to NS-250D/N/H/L type modular system 1, breaking unit 2, unit 3, release Vigi grounding fault protection module 4, insulation monitoring module 5, charged indicating module 6, current meter, voltage release module 7 MN or MX8, multifunctional auxiliary switch 9, direct rotary handle 10, rotary handle extended 11, electric operating mechanism 12, insert type base 13, insert and draw out type configured connector 14, attachments, 15 short terminal covers 16, long terminal cover seven, appearance and installation dimensions of NS-100 ~ 630 size installation dimensions on the back plate is arranged on the guide rail MM C C1 C2 C3 C6 C7 C8 C9 G G1 G4 NS-100/160/250D/N/H/L 297654108431043486 62.512570 NS-400/630D/N/H/L 41.5116 92.518453146 46.5126100200 113.5 MM G5 H H1 H2 H3 H4 H5 H6 H7 K K1 NS-100/160/250D/N/H/L 14080.516194188 160.5321 178.5357 17.535 227127.5255 142.5285240480237 NS-400/630D/N/H/L 47422.545 MM K2 L L1 L2 P1 P2 P4 P5 P6 R R1 NS-100/160/250D/N/H/L 7052.51051408186 111* 838814.529 NS-400/630D/N/H/L 907014018595.5110 16810711231 .5 63 MM R2 R4 R5 R6 R7 R12 R13 φ T φ T4 (Ue) NS-100/160/250D/N/H/L 54108143295843866 NS-400/630D/N/H/L 22 ≤ 32 71.5143188 46.59363126632 ≤ 32 note: P4=126 for NS-250D/N/H/L eight, before the screen hole for the fixed or insertion type circuit breaker with toggle switch set. Schneider Schneider NS Schneider NS it off
